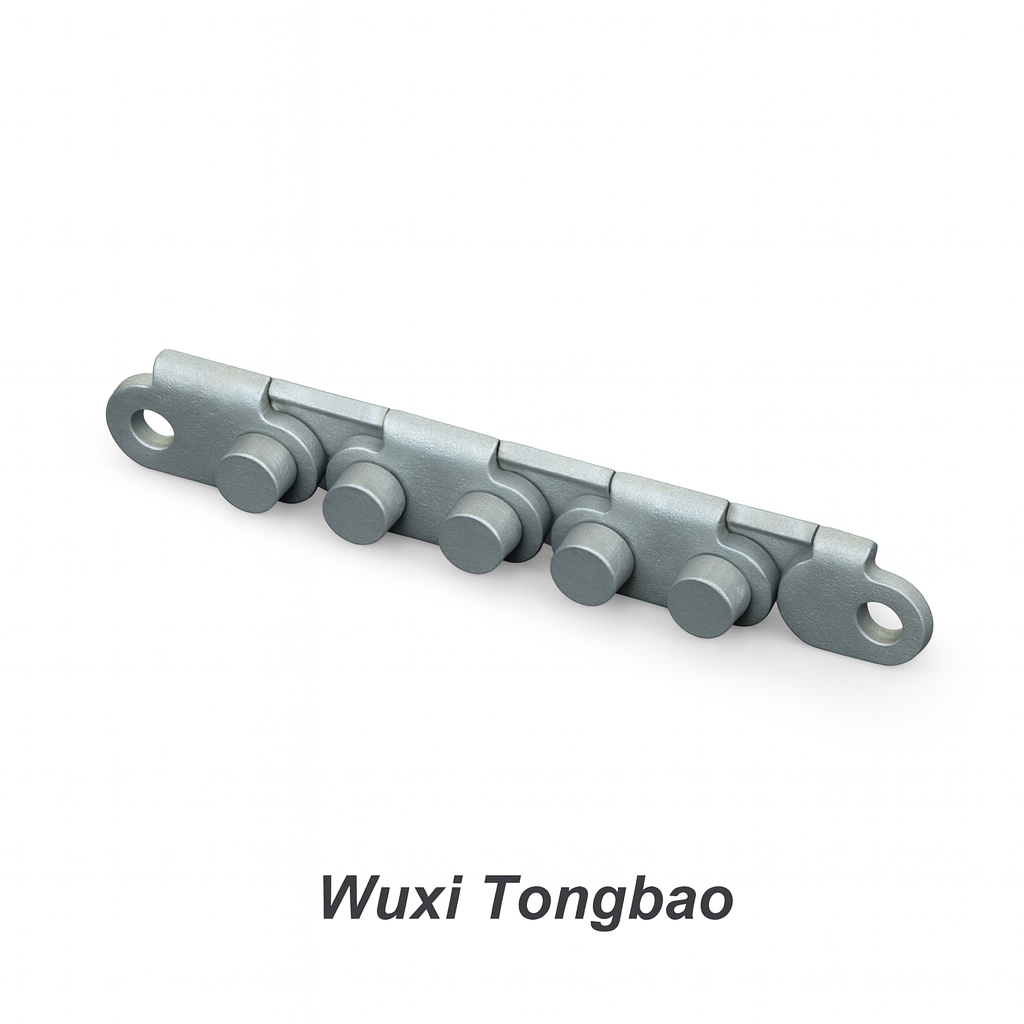

High-precision 5/8″ actuator chain with cylindrical pin heads, zinc-plated and sealed for durability. Ideal for electric window opener drive systems.
Short Description:
-
Optimized design with cylindrical pin heads for smoother engagement
-
Certified under EN ISO 13715 and DIN EN 1670 for dimensional and corrosion resistance standards
-
Multiple stroke lengths (300 mm, 500 mm, 800 mm) for flexible installation
-
Zinc-plated and sealed surface treatment OR nickle-plated for enhanced durability
-
Compact structure with high strength-to-size ratio
-
Excellent resistance to environmental factors and wear
Product Detail
FAQ
Product Tags
This push-out actuator chain with cylindrical pin heads is designed specifically for electric window opener drive systems. Manufactured with a 5/8″ link pitch (12.7 mm), the chain provides smooth and reliable transmission for automated window actuation. The chain is tested according to EN ISO 13715 and meets DIN EN 1670 corrosion resistance grade 2, ensuring long service life even under demanding environmental conditions.
Technical Specifications:
Pitch: 12.7 mm (5/8″)
Width between inner plates: 7 ± 0.1 mm
Height: max. 11.9 mm, min. 3.5 mm
Stroke options: 300 mm, 500 mm, 800 mm
Load capacity: Pulling force up to 15 N
Surface treatment: Zinc plated and sealed
Tolerance: L ±0.25%
Measurement standard: 25 free pins under F = 5 N
This chain is especially suitable for use in rectangular metal box actuators with 30 mm width and 13.5 mm height. It ensures consistent performance in automatic window opening systems across commercial buildings, residential applications, and industrial ventilation control.
