High-strength push window chain for actuators, 5/8” link design, anti-corrosion, smooth operation, and long-lasting reliability.
Short Description:
-
Durable Construction: Made with 5/8” link chain for high strength and reliability.
-
Precision Engineering: Pin diameter tolerance ±0.1 mm ensures smooth and stable motion.
-
Corrosion Resistance: Zinc-plated and sealed surface treatment for long-term use.
-
Flexible Options: Available in stroke lengths of 300 mm, 500 mm, and 800 mm.
-
Compact Design: Slim profile fits into 30 mm × 13.5 mm actuator housings.
-
Stable Performance: Tested with a pulling force of max 15 N.
-
International Standards: Manufactured to EN ISO 13715 specifications.
Product Detail
FAQ
Product Tags

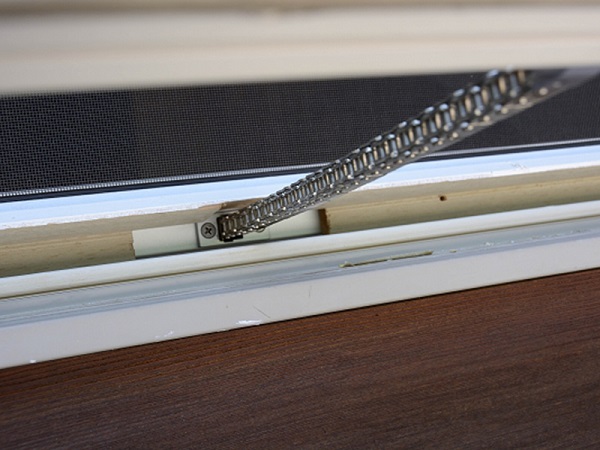

The X series push window chain is engineered for use in window actuators and ventilation systems, ensuring safe and smooth operation in both residential and commercial buildings.
Key Specifications (based on technical drawings):
Link Size: 5/8” link chain
Pitch: 12.7 mm
Pin Diameter: Ø 7 mm ±0.1
Height Range: 9.9–12.3 mm (depending on version)
Minimum Width: 3.5 mm
Bending Radius: R5 / R12 (for flexibility in installation)
Stroke Options: 300 mm, 500 mm, 800 mm
Stroke Length Tolerance: ±0.25%
Load Test: 5 N measurement with 25 free pins / fixed chain links
Box Compatibility: Rectangular metal box, width 30 mm, height 13.5 mm, max pulling force 15 N
Surface Treatment: Zinc-plated and sealed, corrosion-resistant (complies with EN ISO 13715 standard)
Applications:
Automatic window openers
Skylight actuator systems
Smoke ventilation systems
Building automation and smart ventilation solutions
